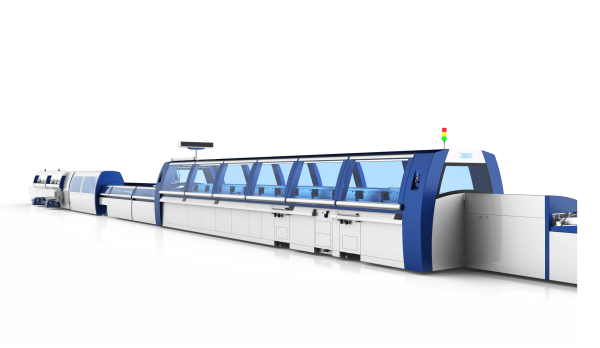

NewBridge Perfect Binder
The NewBridge is JMD’s innovation of fully automatic perfect binding solution with max. speed up to 13,000 books/hour. It provides short make-ready time, high productivity and outstanding binding quality, which is an ideal solution for the printing companies to stay competitive in the ever-changing markets and win more opportunities to increase the profits.
Outstanding Features
Full Automation: Fully automated setup and changeover can be performed in a few minutes by simply inputting binding formats into the touch screen.
High Productivity: High production speed up to 13,000 books/hour can be achieved, which increases greatly the net output and cost-effectiveness.
Robust Construction: The whole system is robustly built with European top quality standards, which ensures a strong stability even at very fast running speed.
Outstanding Binding Quality: Two spine glue tanks and two nipping stations ensure a strong and accurate outstanding binding effect with perfectly-shaped book spines.
Machine Layout:
 |
Servo Motor Controlled Book Clamps
All book clamps provides stable clamping force to ensure high accuracy of each production step. Driven by servo-motor, the book clamp opening width adjustment is fully automated. |
 |
Spine Preparation Stations
Three spine preparation stations provide for spine roughening, milling, notching and brushing. The opening width and height of the roughening, milling and notching stations are fully automated adjusted according to the setting. |
 |
Gluing Application System
Double spine gluing stations with one side gluing station guarantee optimal gluing effect. The spine glue length and the side glue roller opening width are automatically adjusted. |
 |
Two Nipping Stations
Two superior nipping stations exert powerful nipping pressure to create strong and durable binds with perfectly-shaped book spines. The opening width and height of nipping stations are automatically adjusted. |
|
Machine Model |
NewBridge |
|
No. of Clamps |
28 |
|
Max. Mechanical Speed |
13000 c/h |
|
Book Block Length (a) |
140-510mm |
|
Book Block Width (b) |
120-305mm |
|
Book Block Thickness (c) |
3-60mm |
|
Cover Length (d) |
140-510mm |
|
Cover Width (e) |
250-642mm |
See related perfect binding products: Cambridge-12000 Perfect Binder, Superbinder-8000e Perfect Binder, and Superbinder-7000M
Frequently Asked Questions (FAQ)
What is the maximum production speed of the NewBridge Perfect Binder?
The NewBridge Perfect Binder operates at a maximum speed of up to 13,000 books per hour, making it one of JMD’s highest-throughput perfect binding solutions for high-volume commercial printing.
How quickly can the NewBridge Perfect Binder be set up for a new job?
The NewBridge features full automation with changeover performed in just a few minutes by inputting binding formats into the touch screen, significantly reducing make-ready time compared to traditional perfect binders.
What spine thickness range does the NewBridge Perfect Binder support?
The NewBridge Perfect Binder supports a spine thickness range of 140 to 510mm, accommodating a broad variety of book formats from thin booklets to thick catalogs and publications.
What cover width range does the NewBridge support?
The NewBridge Perfect Binder handles cover widths from 250 to 642mm, providing flexibility for a wide range of book and publication sizes.
What makes the NewBridge Perfect Binder competitive for print businesses?
The NewBridge combines high speed, short make-ready time, and outstanding binding quality, making it an ideal solution for printing companies looking to increase productivity, win more business, and improve profitability in competitive markets.
